Import/Export vocabularies

The steps involved for importing Zthes can be summarised as follows:

  1. Select File -> Import/Export -> Import Zthes as Vdex...


    2. Zthes to Vdex

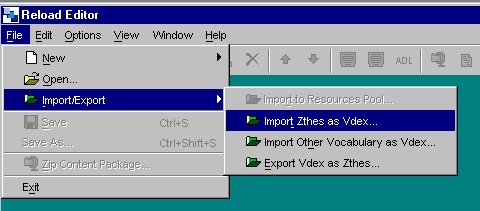

    Figure 1: Import Zthes as Vdex



  2. It opens the ./helpers/md/zthesVocab folder.
  3. Select the required Zthes xml file.


    4. Zthes Folder

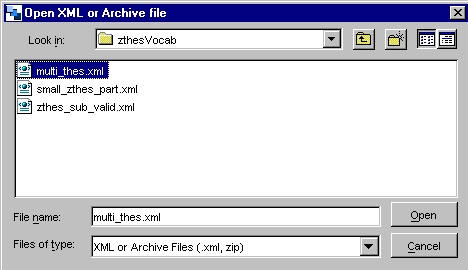

    Figure 2: Choose a Zthes File from zthesVocab Folder



  4. Corresponding Vdex file is created in the ./helpers/md/vdexVocab folder and it is opened in the vocabulary editor.


    5. Vdex File Created

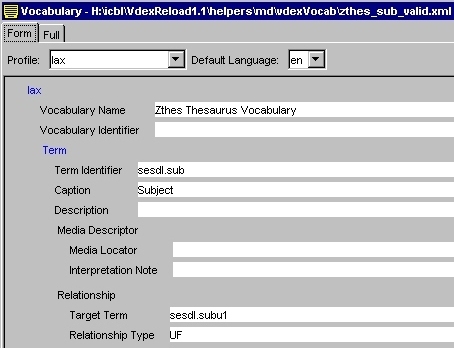

    Figure 3a: Opens the Created Vdex Vocabulary

    Vdex File Stored in vdexVocab Folder

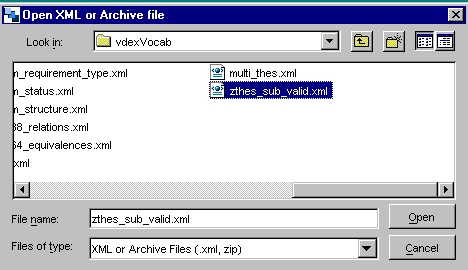

    Figure 3b: Vdex File Stored in vdexVocab Folder



The steps involved for exporting Zthes can be summarised as follows:
  1. Select File -> Import/Export -> Export Vdex as Zthes...


    2. Vdex to Zthes

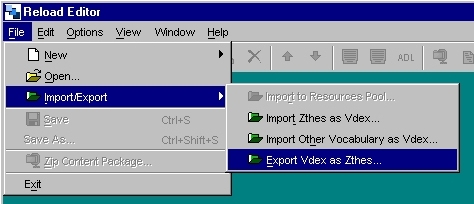

    Figure 4: Export Vdex as Zthes



  2. It opens the ./helpers/md/vdexVocab folder.
  3. Select the required Vdex xml file.


    4. Vdex Folder

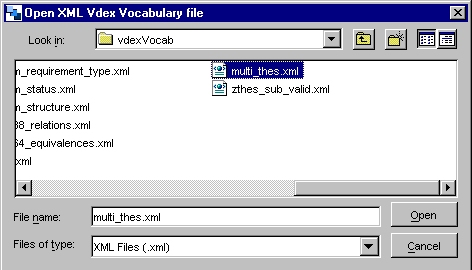

    Figure 5: Choose a Vdex File from vdexVocab Folder



  4. Corresponding Zthes file is created in the ./helpers/md/zthesVocab folder and the Vdex file is opened in the vocabulary editor.


    5. Vdex File Opened

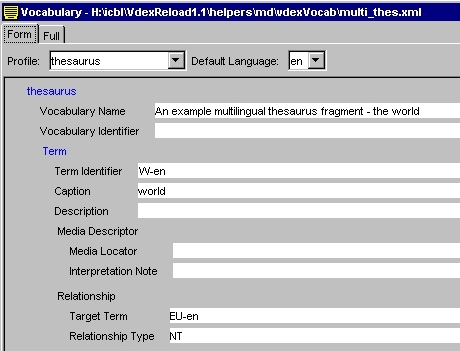

    Figure 6a: Opens the Vdex Vocabulary

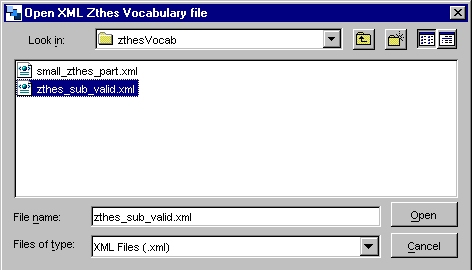

    Zthes File Stored in zthesVocab Folder
    Figure 6b: Zthes File Stored in zthesVocab Folder
